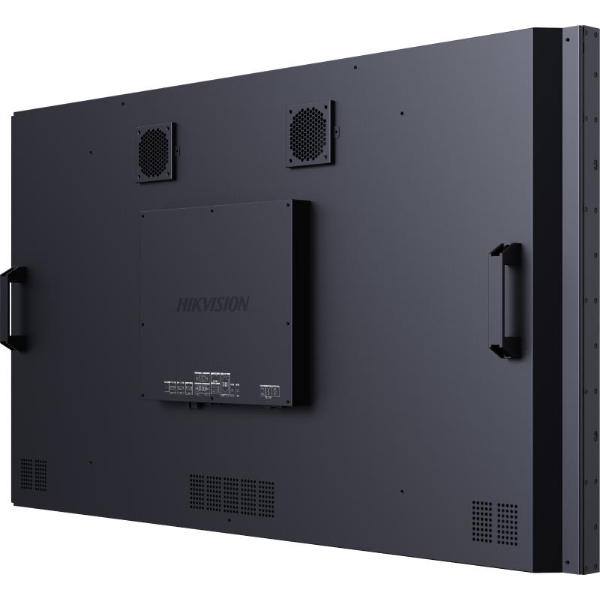

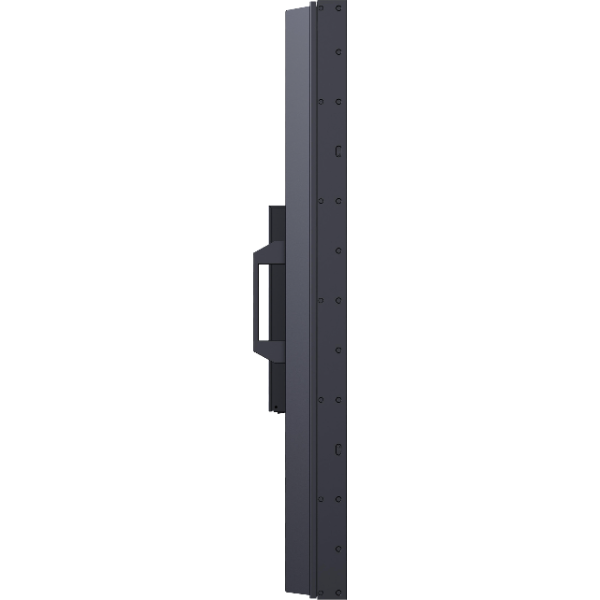

Hikvision DS-D2065LU-Y LCD video wall display — view 1
Indoor LED screensLCD video wallsHikvision

Hikvision DS-D2065LU-Y LCD video wall display

The Hikvision DS-D2065LU-Y is a 65-inch LCD video wall display with 3840 × 2160 resolution. Ideal for control rooms, dashboards and meeting rooms. Supplied, installed and supported by PixelPLUS in Dubai, Abu Dhabi and Sharjah.

Screen size
65 inch
Unit size
1432.58 (W) mm × 807.62 (H) mm × 85.1 (D) mm
Resolution
3840 × 2160@60 Hz (downward compatible)
Brightness
500 cd/m²
Max power
≤ 260 W

Key features

  • Hikvision 65-inch 3.5mm LCD Video Wall Display Unit
  • 4K signal input, auto loop up to 30 screens with HDMI interfaces
  • Switching between six picture modes: Standard/Meeting/Movie/Monitoring/Text/User
  • Factory calibration for colour and brightness uniformity
  • Direct-lit LED backlight with uniform brightness and no boundary shadows
  • 3840 × 2160 resolution, 178° viewing angle
  • Ultra-narrow 3.5 mm bezel design
  • Anti-glare, high definition, high brightness, high color gamut, and vivid images with rich colors
  • Stable and 24-hour continuous working
  • Metal casing for preventing from radiation and magnetic & electric field interference
  • Wall-mount and modular brackets available to meet various installation requirements

DS-D2065LU-Y specifications

Display
Screen Size65 inch
Active Display Area1428.48 (H) mm × 803.52 (V) mm
BacklightDirect-lit LED backlight
Pixel Pitch0.372 mm
Bezel Width2.3 mm (top/left), 1.2 mm (bottom/right)
Resolution3840 × 2160@60 Hz (downward compatible)
Brightness500 cd/m²
Viewing AngleHorizontal 178°, vertical 178°
Color Depth8 bit, 16.7 M
Physical Seam3.5 mm
Contrast Ratio1200: 1
Response Time10 ms
Color Gamut72% NTSC
Surface TreatmentHaze 25%, 3H
Interface
Video & Audio InputHDMI × 1, DVI × 1, VGA × 1, DP× 1, USB × 1
Video & Audio OutputHDMI × 1
Control InterfaceRS232 IN × 1, RS232 OUT × 1
Power
Power Supply100 to 240 VAC, 50/60 Hz
Power Consumption≤ 260 W
Standby Consumption≤ 0.5 W
Working Environment
Working Temperature0 °C to 40 °C (32 °F to 104 °F)
Working Humidity10% RH to 80% RH (non-condensing)
Storage Temperature-20 °C to 60°C (-4 °F to 140 °F)
Storage Humidity10% RH to 90% RH (non-condensing)
General
Casing MaterialSECC
VESA800 (H) mm × 600 (V) mm
Product Dimension (W × H × D)1432.58 (W) mm × 807.62 (H) mm × 85.1 (D) mm (56.4” × 31.8” × 3.35”)
Package Dimension (W × H × D)Carton with a single display: 1630 (W) mm × 1013 (H) mm × 302 (D) mm (64.17” × 39.88” × 11.89”)
Net Weight29.2 ± 0.5 kg (64.37 ± 1.1 lb) for single display
Gross WeightCarton with a single display: 59.4 ± 0.5 kg (130.95 ± 1.1 lb)
Packing ListLCD display × 1, power cable × 1, network cable × 1, 2-meter HDMI cable × 1, screw × 4, remote control × 1, IR receiver × 1, RS-232 converter × 1, quick start guide (multilingual) × 1, quick start guide (English) × 1

Questions about the DS-D2065LU-Y

What is the screen size and resolution of the DS-D2065LU-Y?

The DS-D2065LU-Y has a 65 inch screen with 3840 × 2160 resolution.

Where can I see the DS-D2065LU-Y in Dubai?

Visit the PixelPLUS showroom at 24/26 Wilson Building, 2nd December Street, Opposite World Trade Center, Dubai, open Monday to Friday 9:00–18:30 and Saturday 9:00–14:00. Message us on WhatsApp first to check which models are on display.

How do I get a price for the DS-D2065LU-Y?

Send your screen size or quantity on WhatsApp (+971 50 451 9226) and PixelPLUS will reply with a quote.
