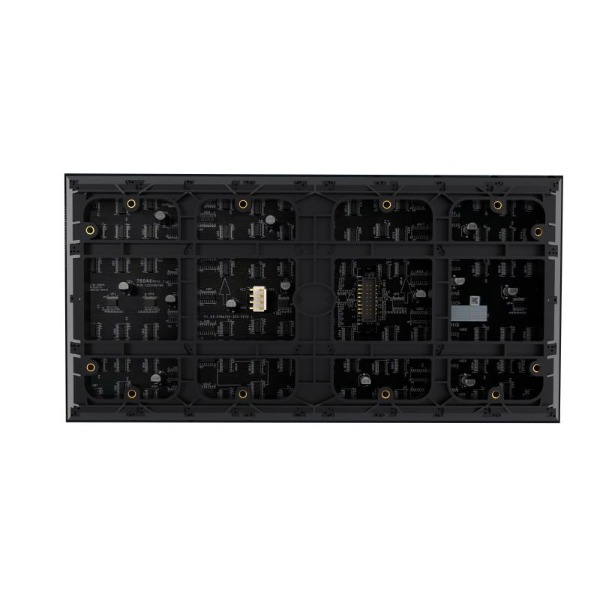

Hikvision DS-D41Q20CA-1PHT indoor LED module — view 1
Indoor LED screensIndoor modulesHikvision

Hikvision DS-D41Q20CA-1PHT P2 Indoor LED module

The Hikvision DS-D41Q20CA-1PHT is a P2 indoor LED module measuring 1515, with 600-800 cd/m2 brightness. Pixels become invisible from about 6 m away, so it suits viewers at that distance or further. Ideal for custom-size video walls, shop interiors and signage. Supplied, installed and supported by PixelPLUS in Dubai, Abu Dhabi and Sharjah.

Pixel pitch
P2 (2 mm)
Unit size
1515
Resolution
160 × 80
Brightness
600-800 cd/m2
Refresh rate
3840 Hz
Max power
≤ 470 W/m2

Key features

  • Supports seamless image stitching in any direction, size and shape and displays stitched images uniformly and consistently without black lines
  • Uses the ultra-high refresh rate to display delicate and smooth video images
  • Uses the broadcast grayscale processing to show more image details
  • High brightness and high contrast

DS-D41Q20CA-1PHT specifications

Product Model
Product ModelDS-D41Q20CA-1PHT
Module
Pixel ConfigurationSMD Triad LED
Pixel Pitch2 mm
Lamp Bead Dimensions1515

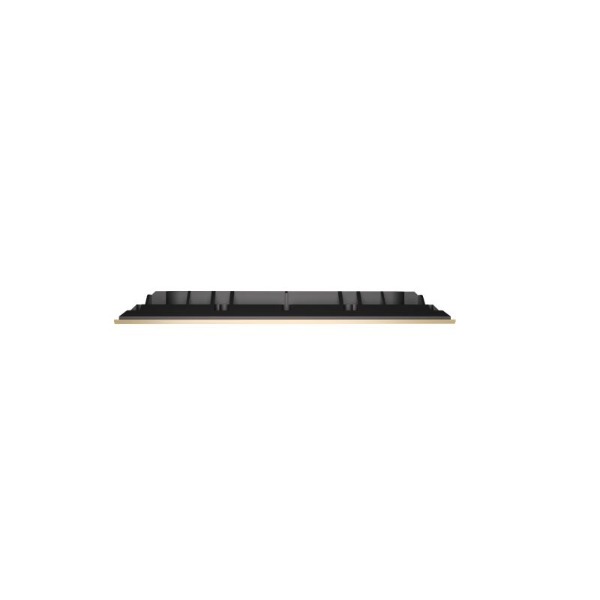

Dimension (W × H × D)320 mm × 160 mm × 16.6 mm (12.6” × 6.3” × 0.65”)
Resolution160 × 80
Pixel Density250000
Signal Source InterfaceHUB75E
Display
White Balance Brightness600-800 cd/m2
Color Temperature3000 K to 10000 K adjustable
Viewing Angle160° (H)/160° (V)
Brightness Uniformity≥ 97%
Color Uniformity≤ ± 0.003Cx, Cy
Contrast Ratio3000:1
Refresh Rate3840 Hz
Processing Performance
Scanning Amount40
Grey LevelUp to 16 bit
Power
Max. Consumption≤ 470 W/m2
Average Consumption< 270 W/m2
Input VoltageDC: 4.5 V to 5 V
Working Environment
Working Temperature-10 °C to 40 °C (14 °F to 104 °F)
Working Humidity10% RH to 80% RH (without condensation)
Storage Temperature-20 °C to 60 °C (-4 °F to 140 °F)
Storage Humidity10% RH to 85% RH (without condensation)
General
Package Dimension (W × H × D)673 (W) mm × 453 (H) mm × 390 (D) mm (26.496″ × 17.834″ × 15.354″) (40 cabinets in 1 box)
Packing ListSeveral LED lamp beads and IC components Several signal cables and power cables
Gross Weight0.61 kg (1.34 lb)
Net Weight0.48 kg (1.06 lb)

Questions about the DS-D41Q20CA-1PHT

What is the best viewing distance for the DS-D41Q20CA-1PHT?

With a 2 mm pixel pitch, pixels become invisible from about 6 m. Closer than that, viewers may see a fine pixel grid — choose a finer pitch for close viewing.

How big a screen can I build with the DS-D41Q20CA-1PHT?

Each module measures 1515 with 160 × 80 pixels. Units join seamlessly, so the screen can be built in multiples of that size. Use the PixelPLUS LED calculator to plan the exact size, resolution and power.

Is the DS-D41Q20CA-1PHT for indoor or outdoor use?

It is designed for indoor use, with 600-800 cd/m2 brightness — ideal for custom-size video walls, shop interiors and signage.

Where can I see the DS-D41Q20CA-1PHT in Dubai?

Visit the PixelPLUS showroom at 24/26 Wilson Building, 2nd December Street, Opposite World Trade Center, Dubai, open Monday to Friday 9:00–18:30 and Saturday 9:00–14:00. Message us on WhatsApp first to check which models are on display.

How do I get a price for the DS-D41Q20CA-1PHT?

Send your screen size or quantity on WhatsApp (+971 50 451 9226) and PixelPLUS will reply with a quote.
