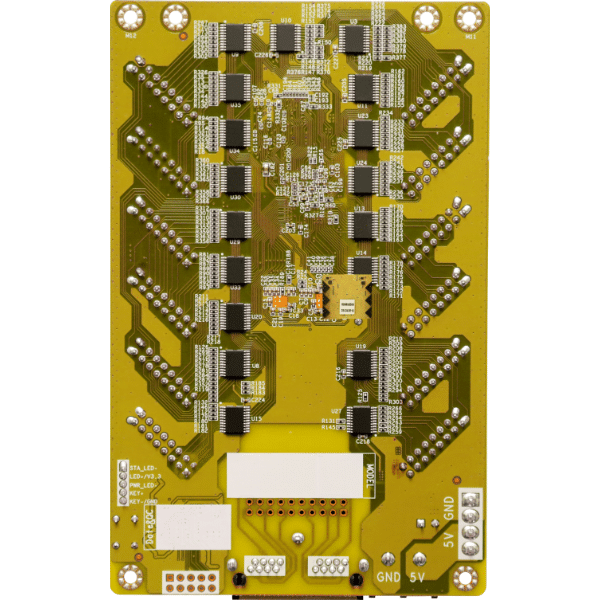

Hikvision DS-D44R12-N / Novastar MRV412 / DH7512 LED controller

The Hikvision DS-D44R12-N / Novastar MRV412 / DH7512 is an LED controller for full-colour LED screens. Ideal for driving LED screens of every size. Supplied, installed and supported by PixelPLUS in Dubai, Abu Dhabi and Sharjah.

Unit size
145.7 mm × 91.5 mm × 18.4 mm
Max power
2.5W

Key features

  • Hikvision Receiving Card (12 Port)
  • DS-D44R12-N is a multi-function receiving card launched by Hikvision. A single card can load up to 512×512 pixels (HikLCT needs to be V5.3.1 or above). It supports color management, 18Bit+, point-by-point chroma correction and RGB independence. Gamma adjustment, 3D and other functions can improve the screen display effect and user experience

DS-D44R12-N / Novastar MRV412 / DH7512 specifications

Model DS-D44R12-N Interface Control Interface RJ45 × 2 Processing Performance Max. Load Capacity 512 × 512 pixels Grey Level 16 bit Power Max. Consumption 2.5W Input Voltage DC 3.3V to 5.5V Working Environment Working Temperature -20°C to +70°C Working Humidity 10% to 90% RH (non-condensing) Storage Temperature –25°C to +125°C Storage Humidity 0% to 95% RH (non-condensing) General Product Dimensions (W × H × D) 145.7 mm × 91.5 mm × 18.4 mm Package Dimensions (W × H × D) 650.0 mm × 500.0 mm × 200.0 mm Net Weight 93.1 g Gross Weight 12.9 Kg Packing List An antistatic bag and anti-collision foam are provided for each receiving card. Each packing box contains 100 receiving cards.
Packing ListAn antistatic bag and anti-collision foam are provided for each receiving card. Each packing box contains 100 receiving cards.
ModelDS-D44R12-N
Interface
Control InterfaceRJ45 × 2
Processing Performance
Max. Load Capacity512 × 512 pixels
Grey Level16 bit
Power
Max. Consumption2.5W
Input VoltageDC 3.3V to 5.5V
Working Environment
Working Temperature-20°C to +70°C
Working Humidity10% to 90% RH (non-condensing)
Storage Temperature–25°C to +125°C
Storage Humidity0% to 95% RH (non-condensing)
General
Product Dimensions (W × H × D)145.7 mm × 91.5 mm × 18.4 mm
Package Dimensions (W × H × D)650.0 mm × 500.0 mm × 200.0 mm
Net Weight93.1 g
Gross Weight12.9 Kg
Packing ListAn antistatic bag and anti-collision foam are provided for each receiving card. Each packing box contains 100 receiving cards.

Questions about the DS-D44R12-N / Novastar MRV412 / DH7512

Which LED screens does the DS-D44R12-N / Novastar MRV412 / DH7512 work with?

It drives full-colour LED screens. PixelPLUS sets it up with the LED cabinets or modules you choose and configures the screen for you.

Where can I see the DS-D44R12-N / Novastar MRV412 / DH7512 in Dubai?

Visit the PixelPLUS showroom at 24/26 Wilson Building, 2nd December Street, Opposite World Trade Center, Dubai, open Monday to Friday 9:00–18:30 and Saturday 9:00–14:00. Message us on WhatsApp first to check which models are on display.

How do I get a price for the DS-D44R12-N / Novastar MRV412 / DH7512?

Send your screen size or quantity on WhatsApp (+971 50 451 9226) and PixelPLUS will reply with a quote.
