DS-D5C65RB/A
Hikvision DS-D5C75RB/A - Image 2
Hikvision DS-D5C75RB/A - Image 3

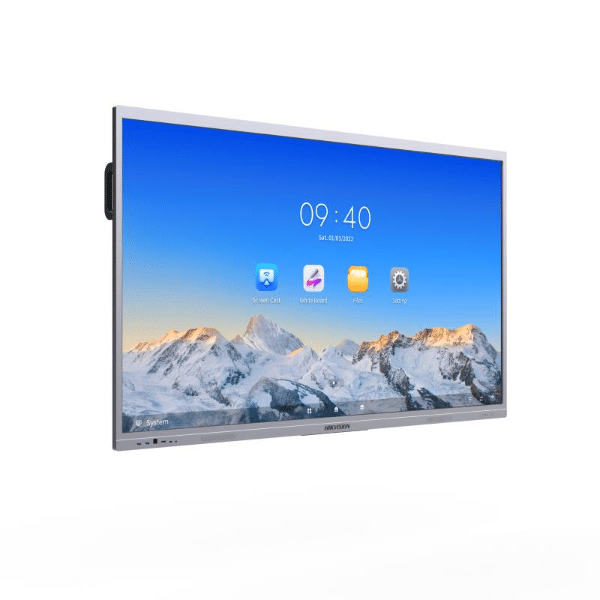

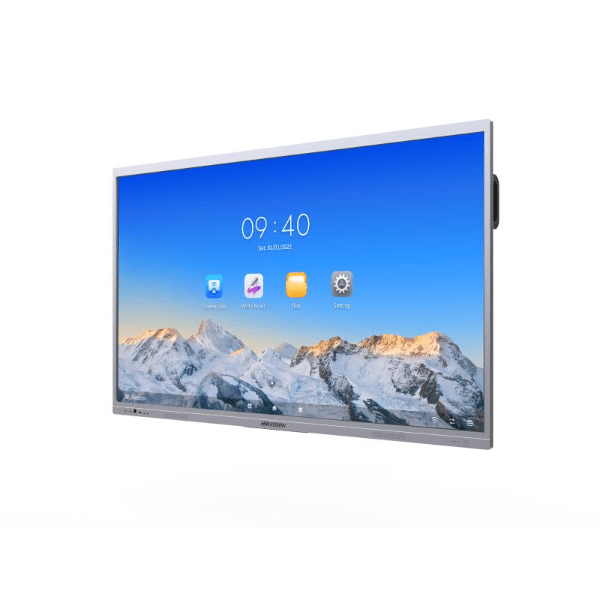

Hikvision DS-D5C75RB/A

75-inch 4K Interactive Display

  • UHD 4K display with resolution of 3840 × 2160.
  • Anti-glare and anti-blocking design to ensure smooth interaction.
  • Dual systems of Android and Windows（Optional with OPS） saving cost and easy to use, video conference software are recommonded to run under Windows system.
  • Quick response, at most 50-points touch control and smooth writing experience.
  • Built-in network switch chip saves a network switch.
  • All-in-one design with tempered glass and intelligent temperature control, making it environmental-friendly and safety-guaranteed, support blue light protection.
  • EDLA Certified
Category:

Specification

Display
Screen Size 75 inch
Backlight DLED
Pixel Pitch 0.14325(H) × 0.42975(V) mm
Resolution 3840 × 2160 @60 Hz
Brightness 400 cd/m² (Typ.)
Color Depth 10 bit
Display Color 1.07G
Response Time 5 ms
Panel Type VA
Contrast Ratio 5000:1 (Static); 30,000:1 (Dynamic)
Color Gamut 72% NTSC (CIE1931) (Typ.)
Refresh Rate 60 Hz
Viewing Angle 178°(H)/178°(V)
Aspect Ratio 16:09
Surface Hardness 9H
Surface Glass 3.2 mm Anti-Glare Glass
Surface Haze 25%Haze
Glass Bonding Method Zero Lamination
Display Area 1428.48mmx803.52mm
Working Duration 7 × 16H
Transmittance 88% ± 3
Lifespan 50,000 hours


Touch
Type Infrared Touch Screen
Touch Point 50 point multi-touch
Touch Response Time ≤ 2 ms
Minimum Touch Object ≥ 1.5 mm (≥ 90% touching area)
Touch Precision ± 0.5 mm (≥ 90% touching area)
Touch Resolution 32768 × 32768


Built-in System
Operation System Android 13.0
Memory 8 GB
Built-in Storage 128 GB


Processor

 Quad-core Cortex-A76 × 4 (2.4GHz)and quad- core Cortex-A55 × 4 (1.8GHz)
GPU Mali-G610 MC4
HDCP Version

2.3


Power
Power Supply 100 to 240 VAC, 50/60 Hz
Standby Consumption ≤ 0.5 W
Average Consumption < 150W


Interface
Video & Audio Input HDMI In (HDMI 2.0)× 3, VGA In x 1, DP In (DP 1.2)× 1,

Audio In × 1


Video & audio output



HDMI Out (HDMI 2.0)× 1, Audio Out × 1, SPDIF Out × 1
Control interface TOUCH-USB 3.0 × 3, RS232 × 1






Network Interface



LAN (1000 Mbps) × 2

WIFI AP&Station，2.4G/5G

IEEE 802.11 a/b/g/n/ac 2×2 MIMO (2.4 GHz and 5 GHz) authentication protocols WEP, WPA, WPA2, PSK and 802.1X EAP


Data Transmission Interface



USB 3.0 × 4, USB 2.0 × 1, Type-C × 2 (Type-C supports USB 2.0, DP 1.2, and charging functions; side charging 15 W, front charging 65 W)


Working Environment


Working Temperature



0 °C to 40 °C (32 °F to 104°F)
Working Humidity 10%~90% RH



DS-D5C75RB/A
