PIX-AD55CP
| Brightness | 400-600nit |
|---|---|
| Manufacture | PixelPLUS |

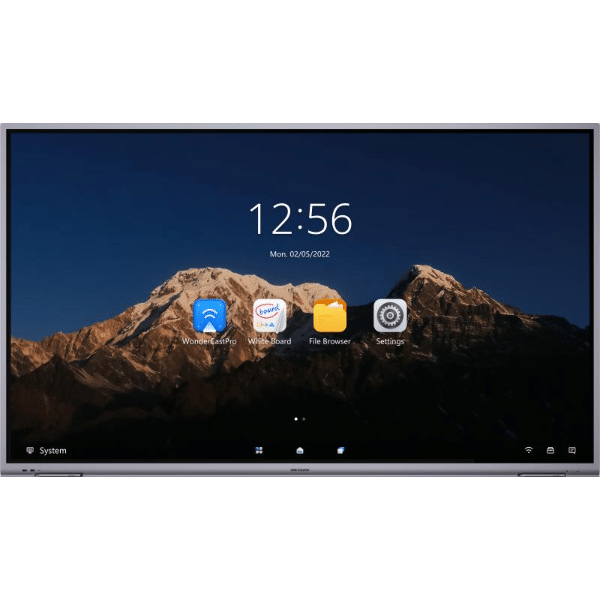

The 4K high-definition intelligent network commercial display is a state-of-the-art digital signage playback terminal. It features a timing switch, remote management capabilities, and a comprehensive machine warranty. With versatile playback options, new content can be loaded directly from a computer or USB drive via the monitor’s built-in port. This display is widely used in catering chains, conference rooms, fashion stores, cinemas, exhibition halls, and other settings. Its intelligent split-screen system supports various split-screen configurations, enabling synchronized playback of videos and images.
| Specification | |||||||||||||||||
| Model | |||||||||||||||||
| Display | Viewing Angle | 178° (H)/178° (V) | |||||||||||||||
| Screen Size | 55 inch | ||||||||||||||||
| Active Display Area | 67.50 (H) × 1200 (V) mm | ||||||||||||||||
| Backlight | D-LED | ||||||||||||||||
| Pixel Pitch | 0.315 (H) × 0.315 (V)mm | ||||||||||||||||
| Resolution | 2160 x 3840 | ||||||||||||||||
| Brightness | 500 cd/m² | ||||||||||||||||
| Color Depth | 10 bit, (8 bit + FRC) | ||||||||||||||||
| Contrast Ratio | 5000:1 | ||||||||||||||||
| Response Time | 6.5 ms | ||||||||||||||||
| Color Gamut | 72% NTSC | ||||||||||||||||
| Refresh Rate | 60 Hz | ||||||||||||||||
| Built-in System | Operation System | Android | |||||||||||||||
| CPU | Cortex-A17, 4-core, 1.6 GHz | ||||||||||||||||
| Memory | 2 GB – 8GB | ||||||||||||||||
| Storage | 16-32 GB EMMC | ||||||||||||||||
| Interface | Video & Audio Input | HDMI IN | |||||||||||||||
| Video & Audio Output | AUDIO OUT × 1 | ||||||||||||||||
| Network Interface | 1 x LAN, Wi-Fi, BT 4.2 | ||||||||||||||||
| Data Transmission Interface |
2 x USB, 1 x TF Card | ||||||||||||||||
| Loudspeaker | 2 × built-in speaker, 8 Ω 5 W | ||||||||||||||||
| General | Product Dimensions (W × H × D) |
1770 (H) x 640 (V) x 610 (D) mm | |||||||||||||||
| Power Supply | 100 to 240 VAC, 50/60 Hz | ||||||||||||||||
| Power Consumption | ≤ 150 W | ||||||||||||||||
| Working humidity | 0% to 90% (no condensation) | ||||||||||||||||
| Standby Consumption | < 0.5 W | ||||||||||||||||
| Working temperature | 0 °C to 40 °C (32 °F to 104 °F) | ||||||||||||||||
| Material Type | Supports DAT, MPG, VOB, TS, AVI, MKV, MP4, MOV, 3GP, TS, FLV, WEBM, ASF, MP1, MP2, MP3, WMA, WAV, OGG, OGA, FLAC, ACC, M4A, XMF, MXMF, RTTTL, RTX, OTA, IMY, JPG, JPEG, BMP, GIF, PNG |
||||||||||||||||
| Package Dimensions (W × H × D) |
1960 (H) × 7575 (V) × 250 (D) mm | ||||||||||||||||
| Packing List | 1 × Screen, 1 × Base, 1 × Key, 1 × Screw Kit, | ||||||||||||||||
| Net Weight | 38.90 kg | ||||||||||||||||
| Gross Weight | 43.190 kg | ||||||||||||||||
